Pyrosleeve PGH.20/ROS
Pyrosleeve PGH.20/ROS
Pyrosleeve PGH.20/ROS

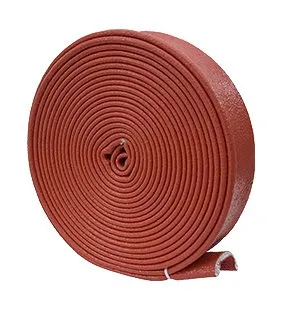

PGH.20/ROS: Red Oxide Silicone Coated Glass Fibre Sleeving, also commonly known as Firesleeve, is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high grade iron oxide silicone elastomer rubber.
PGH.20/ROS sleeving possesses outstanding characteristics making it ideal for protecting hose assemblies, cables, and wires
PGH.20/ROS: Red Oxide Silicone Coated Glass Fibre Sleeving, also commonly known as Firesleeve, is manufactured from ‘E’ glass fibre yarn knitted to form a sleeve and coated with high grade iron oxide silicone elastomer rubber.
PGH.20/ROS sleeving possesses outstanding characteristics making it ideal for protecting hose assemblies, cables, and wires
Availability
Availability
Standard method of supply: 15M coils
Can be supplied in other order forms e.g. layered into boxes – subject to size and quantity
Lead time
Availability
Lead time: All diameters detailed below are available ExStock, and can be despatched the same day.
Characteristics
- CharacteristicsHigh flexibility
- High flexibility
- Continuous protection at an operating temperature of 250ºC
- Ability to withstand a molten metal splash at 1200ºC
- Excellent flame resistance
- Provides personnel protection against burns from hot hoses, steam lines, etc.
- Helps to reduce energy loss by retaining heat within pipework
- When exposed to flame the high-grade rubber will form a protective
Sizes Available
| Available Sizes Nominal Inside diameters(mm) | Characteristics | |
|---|---|---|
| 6 | ||
| 10 | Effect of heat | Will not burn. Retains 75% tensile @ 340 °C |
| 13 | * | |
| 16 | * | |
| 20 | ||
| 22 | Effects of acids and alkalis | Resistant to acids is fair. Resistance of Alkalis is good |
| 25 | * | |
| 28 | * | |
| 32 | ||
| 35 | Silicone rubber Durometer Shore A Initial Aged 240hrs @ 200 °C | |
| 38 | * | |
| 41 | * | 35 |
| 44 | * | 45 |
| 50 | ||
| 57 | Dielectric Strength | |
| 63 | ||
| 70 | Tensile Strength | 400.000- 500.000psi* |
| 76 | * | |
| 83 | Elastic Recovery | 100% |
| 89 | ||
| 95 | Specific Gravity | 2.54- 2.69 |
| 102 | ||
| 114 | Effect of bleaches and solvent | Unaffected |
| 127 |
Availability
Standard method of supply: 15M coilsCan be supplied in other order forms e.g. layered into boxes – subject to size and quantity.
Lead time: All diameters detailed below are available ExStock, and can be despatched the same day.
- CharacteristicsHigh flexibility
- High flexibility
- Continuous protection at an operating temperature of 250ºC
- Ability to withstand a molten metal splash at 1200ºC
- Excellent flame resistance
- Provides personnel protection against burns from hot hoses, steam lines, etc.
- Helps to reduce energy loss by retaining heat within pipework
- When exposed to flame the high-grade rubber will form a protective
| Available Sizes Nominal Inside diameters(mm) | Characteristics | |
|---|---|---|
| 6 | ||
| 10 | Effect of heat | Will not burn. Retains 75% tensile @ 340 °C |
| 13 | * | |
| 16 | * | |
| 20 | ||
| 22 | Effects of acids and alkalis | Resistant to acids is fair. Resistance of Alkalis is good |
| 25 | * | |
| 28 | * | |
| 32 | ||
| 35 | Silicone rubber Durometer Shore A Initial Aged 240hrs @ 200 °C | |
| 38 | * | |
| 41 | * | 35 |
| 44 | * | 45 |
| 50 | ||
| 57 | Dielectric Strength | |
| 63 | ||
| 70 | Tensile Strength | 400.000- 500.000psi* |
| 76 | * | |
| 83 | Elastic Recovery | 100% |
| 89 | ||
| 95 | Specific Gravity | 2.54- 2.69 |
| 102 | ||
| 114 | Effect of bleaches and solvent | Unaffected |
| 127 |
Pyrosleeve.co.uk operates a policy of continuous technical improvement. We reserve the right, therefore, to modify products without prior notification.
The information provided above does not form a specification.
Because Pyrosleeve.co.uk cannot be aware of all customer applications, no warranty confirming the fitness or suitability of the product for any particular application can be given. Any proposed use of a Pyrosleeve product should be tested and the performance independently verified.
Pyrosleeve.co.uk operates a policy of continuous technical improvement. We reserve the right, therefore, to modify products without prior notification.
The information provided above does not form a specification.
Because Pyrosleeve.co.uk cannot be aware of all customer applications, no warranty confirming the fitness or suitability of the product for any particular application can be given. Any proposed use of a Pyrosleeve product should be tested and the performance independently verified.
